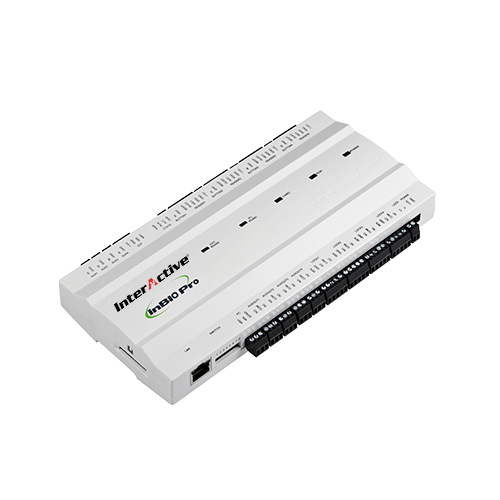

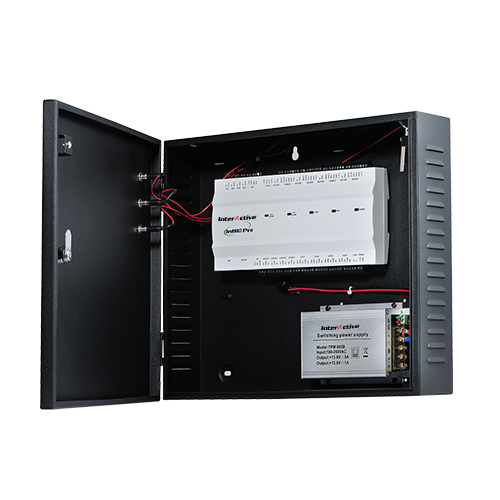

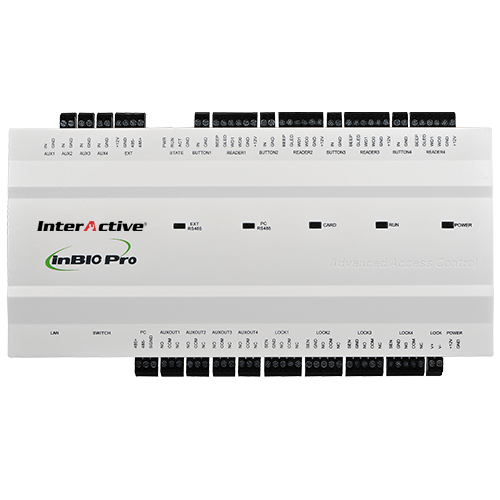

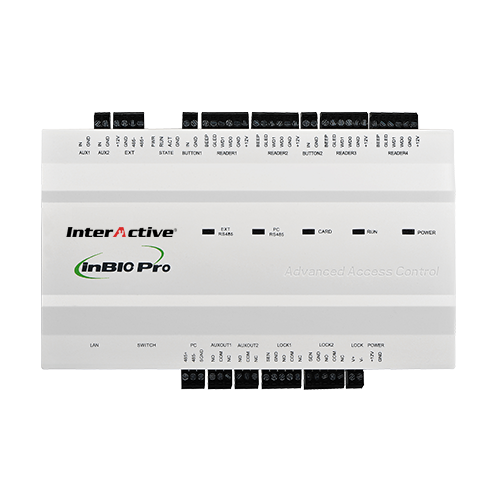

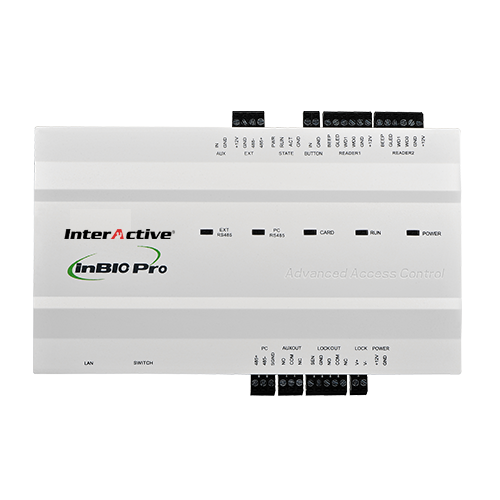

InBio Pro Series


InBio Pro Series

solusi keamanan.
Dalam kombinasi dengan FR1300 RS485 reader, panel dapat mengotentikasi pengguna di bawah beberapa mode verifikasi seperti sidik jari, kartu dan kata sandi untuk tingkat keamanan yang lebih tinggi.

Spesifikasi

InBio-160 Pro InBio-260 Pro InBio-460 Pro
Number of doors controller 1 Door 2 Door 4 Door
Numbers of readers supported 4(2 RS-485 Reader, 2 26-bit wiegand reader) 8(4 RS-485 Reader, 4 26-bit wiegand reader) 12 (8 RS-485 Reader, 4 26-bit wiegand reader)
Types of readers supported 26-bit Wiegand and RS485 FR Series Reader 26-bit Wiegand and RS485 FR Series Reader 26-bit Wiegand and RS485 FR Series Reader
Number of Inputs 3(Exit button and Door Status, 1 AUX) 6( 2 Exit button, 2 Door Status, 2 AUX) 4 (2-Form C Relay for Lock and 2- 12( 4 Exit button, 4 Door Status, 4 AUX) 8 (4-Form C Relay or Lock and 4-
Number of Outputs 2 (1-Form C Relay for Lock and One Form C Relay for Aux Output) Form C Relay for Aux Output) Form C Relay for Aux Output)
Card holders Capacity 60,000 60,000 60,000
Fingerprint Capacity 20,000 20,000 20,000
Log Events Capacity 100,000 100,000 100,000
Communication TCP/IP TCP/IP TCP/IP
Package Dimension 350(L)×90(H)×300(W)mm 350(L)×90(H)×300(W)mm 350(L)×90(H)×300(W)mm
Package Weight 3.6kg 3.6kg 3.7kg
CPU 32 bit 1.2GHz CPU 32 bit 1.2GHz CPU 32 bit 1.2GHz CPU
RAM 128MB 128MB 128MB
Flash Memory 256MB 256MB 256MB
Power 9.6V-14.4V DC 9.6V-14.4V DC 9.6V-14.4V DC
Operating Temp 0-45 °C 0-45 °C 0-45 °C
Operating Humidity 20% to 80% 20% to 80% 20% to 80%
